Fiber Laser Marking

Fiber Laser Marking Machine can work with most of Metal Marking Applications such as Gold, Silver, Brass, Aluminum, Steel, and Iron etc… and C02 Laser is used for Mark on Non-Metal materials such as ABS, Nylon, PES, PVC etc. Component Traceability Purpose – Laser marking is used in all Automotive, Production & Manufacturing Industries.

Precise and contrasted marking at a high speed
Working life of laser source is 50,000 hours MTBF (Expected 1,00,000 hours)
No consumables used for the running.
Perfect solution for marking Alphanumerical, logos, images, designs, QR code, 2 Matrix code and etc.
The system is maintenance free.

Features

Machine has been provided in a compact way so that it can be mounted wherever we need based on your requirement.
Machine has been interfaced with the existing testing machine to mark the
required content in the required time.
Panel Cooler has been provided with the machine which helps the machine to run in good condition without Air Conditioner.
SMPS, EMI Filter, switches are used in the electrical panel for safety purpose.
EZ-CAD // Marking Mate Software is used for Laser Marking application.
Marking make is used for Laser Marking application.

TECHNICAL PARAMETERS
Laser Make	IPG PHOTONICS // JPT // RAYCUS // MAX PHOTONICS // TRUMPF LASER
Machine Model No	AFLM-20W // AFLM-30W // AFLM-50W // AFLM-100W // AFLM-200W // AFLM-300W
Brand Name	ACONEX
Laser Type	Fiber
Laser Technology	Q Switched Pulsed Fiber Laser
Stimulation Method	Pulsed

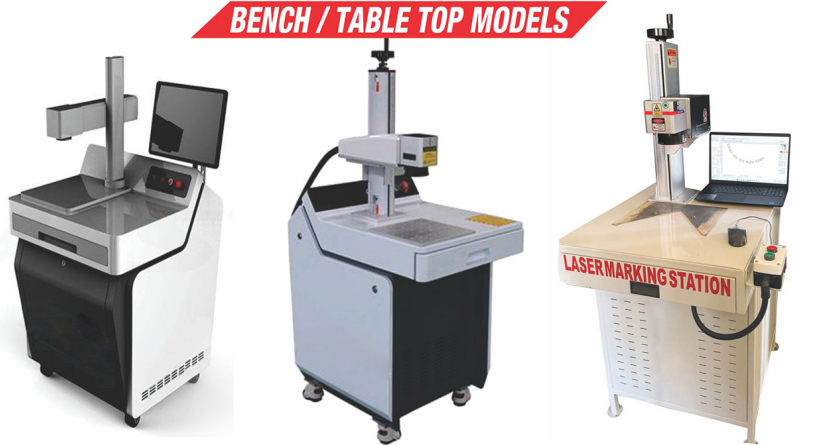

Machine Type	Controller Based / Bench / Table Top
Frequency	30 – 60 kHz
Wavelength	1064 nm
Accuracy	0.002 mm
Laser Power	20 Watts // 30 Watts // 50 Watts // 100 Watts // 200 Watts // 300 Watts
Repeatability	0.03 mm
Scanner	High Speed Scanning Head
Mode of Operation	Auto / Manual
Marking Area	112×112 // 150×150 // 174×174 // 220×220 // 300×300 // 400×400
Marking Speed	Max. 17,000 mm/s to 24,000 mm/s
Marking Letter Length	Min. 0.1 mm
Marking Application	Metal – MS, SS, Aluminum, Cast Iron, Aluminum Casting / Some Special Plastic Parts
Power Supply	Single Phase, 220V AC, 50 Hz
Interface	15 & 25 Pin Connector
UPS Rating	1 KVA Online
Z-Axis	Manual // Motorized
Cooling Method	Panel Cooler
Ambient Temperature	0-45°C / Humidity 5-95%
Control Software	Marking Mate // EZ-CAD Software // Power Mark
Size	550(W) × 483(L) × 177(H) mm

TECHNICAL PARAMETERS

Laser Make

IPG PHOTONICS // JPT // RAYCUS // MAX PHOTONICS // TRUMPF LASER

Machine Model No

AFLM-20W // AFLM-30W // AFLM-50W // AFLM-100W // AFLM-200W // AFLM-300W

Brand Name

ACONEX

Laser Type

Fiber

Laser Technology

Q Switched Pulsed Fiber Laser

Stimulation Method

Pulsed

Machine Type

Controller Based / Bench / Table Top

Frequency

30 – 60 kHz

Wavelength

1064 nm

Accuracy

0.002 mm

Laser Power

20 Watts // 30 Watts // 50 Watts // 100 Watts // 200 Watts // 300 Watts

Repeatability

0.03 mm

Scanner

High Speed Scanning Head

Mode of Operation

Auto / Manual

Marking Area

112×112 // 150×150 // 174×174 // 220×220 // 300×300 // 400×400

Marking Speed

Max. 17,000 mm/s to 24,000 mm/s

Marking Letter Length

Min. 0.1 mm

Marking Application

Metal – MS, SS, Aluminum, Cast Iron, Aluminum Casting / Some Special Plastic Parts

Power Supply

Single Phase, 220V AC, 50 Hz

Interface

15 & 25 Pin Connector

UPS Rating

1 KVA Online

Z-Axis

Manual // Motorized

Cooling Method

Panel Cooler

Ambient Temperature

0-45°C / Humidity 5-95%

Control Software

Marking Mate // EZ-CAD Software // Power Mark

Size

550(W) × 483(L) × 177(H) mm
