Laser Marking Machine

Fiber Laser Marking Machine can work with most of Metal Marking Applications such as Gold, Silver, Brass, Aluminum, Steel, and Iron etc… and C02 Laser is used for Mark on Non-Metal materials such as ABS, Nylon, PES, PVC etc. Component Traceability Purpose – Laser marking is used in all Automotive, Production & Manufacturing Industries.

  • Precise and contrasted marking at a high speed
  • Working life of laser source is 50,000 hours MTBF (Expected 1,00,000 hours)
  • No consumables used for the running.
  • Perfect solution for marking Alphanumerical, logos,
    images, designs, QR code, 2 Matrix code and etc.
  • The system is maintenance free

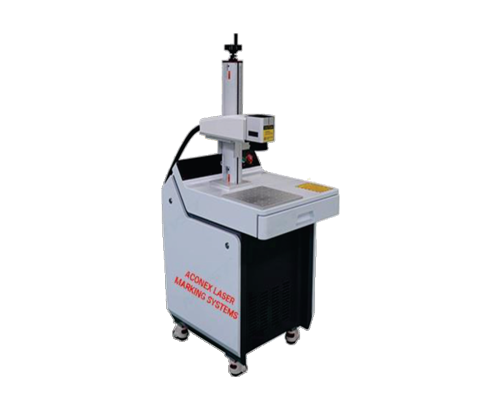

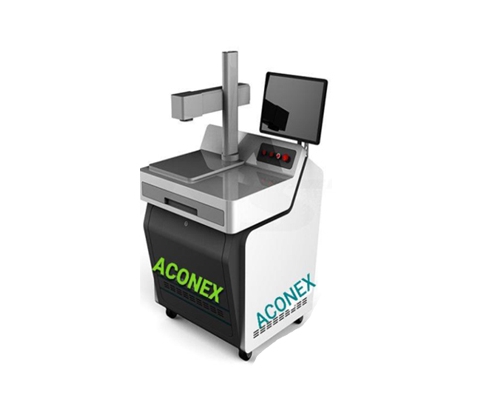

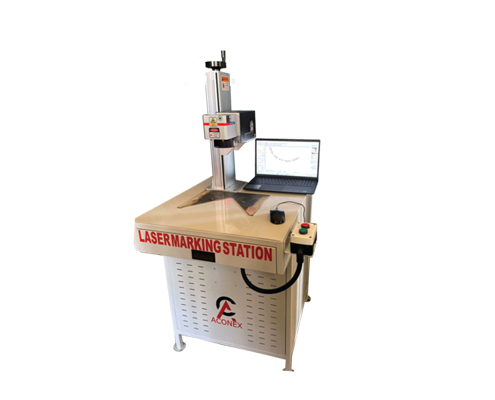

Bench / Table Top Models

Features

  • Machine has been provided in a compact way so that it can be mounted wherever we need based on your requirement.
  • Machine has been interfaced with the existing testing machine to mark the required content in the required time.
  • Panel Cooler has been provided with the machine which helps the machine to run in good condition without Air Conditioner.
  • SMPS, EMI Filter, switches are used in the electrical panel for safety purpose.
  • EZ-CAD // Marking Mate Software is used for Laser Marking application.
  • Marking make is used for Laser Marking application
Technical Parameter Specification
Laser Make IPG PHOTONICS // JPT // RAYCUS // MAX PHOTONICS // TRUMPF LASER

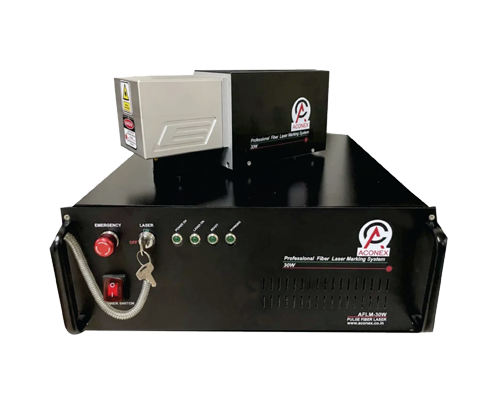

Machine Model No AFLM-20W // AFLM-30W // AFLM-50W // AFLM-100W
Brand Name ACONEX
Laser Type Fiber
Laser Technology Q Switched Pulsed Fiber Laser
Stimulation Method Pulsed
Machine Type Controller Based / Bench / Table Top
Frequency 30 – 60 kHz
Wavelength 1064 nm
Accuracy 0.002 mm
Laser Power 20 Watts // 30 Watts // 50 Watts // 100 Watts
Repeatability 0.03 mm
Scanner High Speed Scanning Head
Mode of Operation Auto / Manual
Marking Area 112112 // 150150 // 174174 // 220220 // 300300 // 400400
Marking Speed Max. 17,000 mm/s to 24,000 mm/s
Marking Letter Length Min. 0.1 mm
Marking Application Metal – MS, SS, Aluminum, Cast Iron, Aluminum Casting / Some Special Plastic Parts
Power Supply Single Phase, 220V AC, 50 Hz
Interface 15 & 25 Pin Connector
UPS Rating 1 KVA Online
Z-Axis Manual // Motorized
Cooling Method Panel Cooler
Ambient Temperature Temperature: 0-45°C / Humidity: 5-95%
Control Software Marking Mate // EZ-CAD Software
Size 550 (W) x 483 (L) x 177 (H) mm

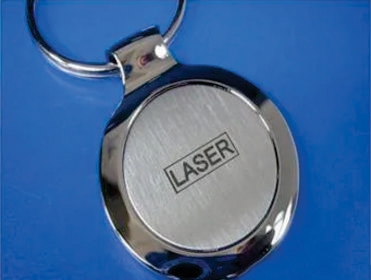

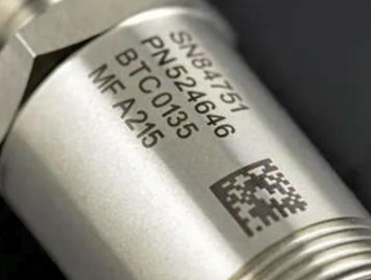

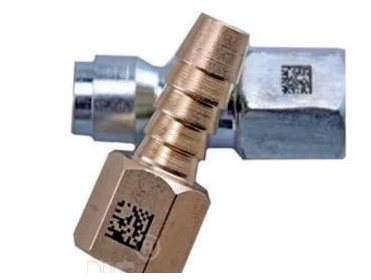

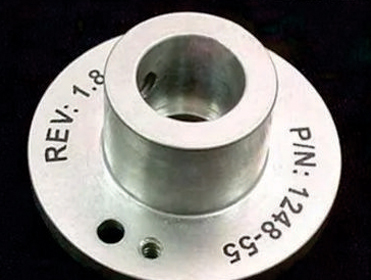

Making Sample
